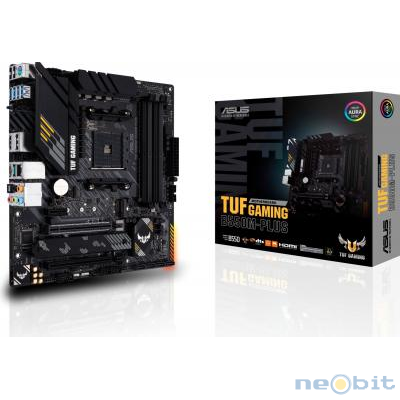

| ASUS TUF GAMING B550M-PLUS, DDR4, SATA3, USB3.2Gen2, DP, 2.5Gb, AM4 mATX |
| Cena: 106,07 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | TUF GAMING B550M-PLUS * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
PODNOŽJE: AMD AM4
ZA PROCESORJE: AMD RYZEN 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
FORMAT: micro ATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B550
POMNILNIK:
4 x DDR4 DIMM (4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz) do skupno 128GB kapacitete, dual channel podpora
GRAFIKA: DA, preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x4
1 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek RTL8125B 2.5Gb Ethernet z TUF LANGuard
ZVOČNA KARTICA: Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x COM port header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
ZUNANJI PRIKLJUČKI:
4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x LAN (2.5G) port(s)
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
DODATNO:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b550m-plus/
|
 |
|
|
|
